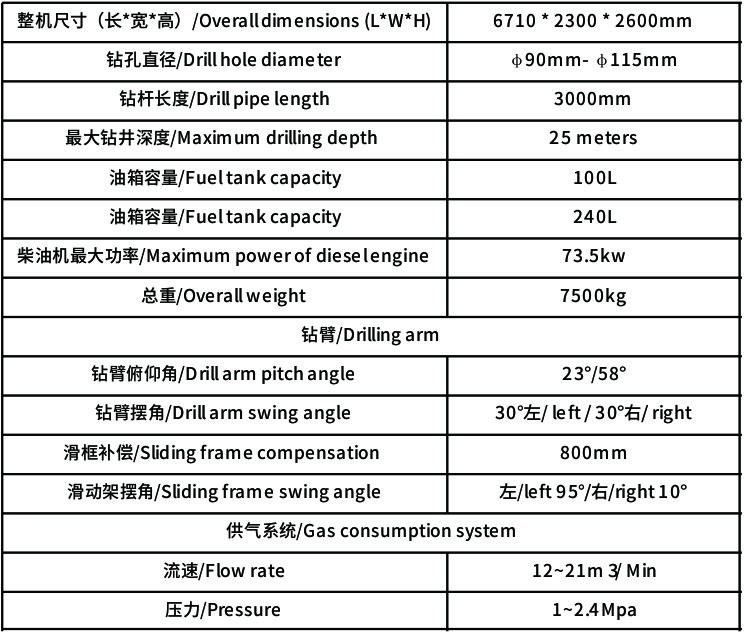

| 参数Parameter | ZK70 |
|---|---|
| 整机尺寸（长*宽*高）/Overall dimensions (L * W * H) | 6710*2300*2600mm |
| 钻孔直径/Drill hole diameter | φ90mm- φ115mm |
| 钻杆长度/Drill pipe length | 3000mm |
| 最大钻井深度/Maximum drilling depth | 25 meters |
| 油箱容量/Fuel tank capacity | 100L |
| 总重/Overall weight | 7500kg |
| 液压油箱容量/Hydraulic oil tank capacity | 240L |
| 柴油机最大功率/Maximum power of diesel engine | 73.5kw |
| 钻臂俯仰角/Drill arm pitch angle | 23°/58° |
| 钻臂摆角/Drill arm swing angle | 30°左/ left / 30°右/ right |
| 滑框补偿/Sliding frame compensation | 800mm |
| 滑动架摆角/Sliding frame swing angle | 左/left 95°/右/right 10° |
| 流速/Flow rate | 12~21m ³/ Min |
| 压力/Pressure | 1~2.4Mpa |
