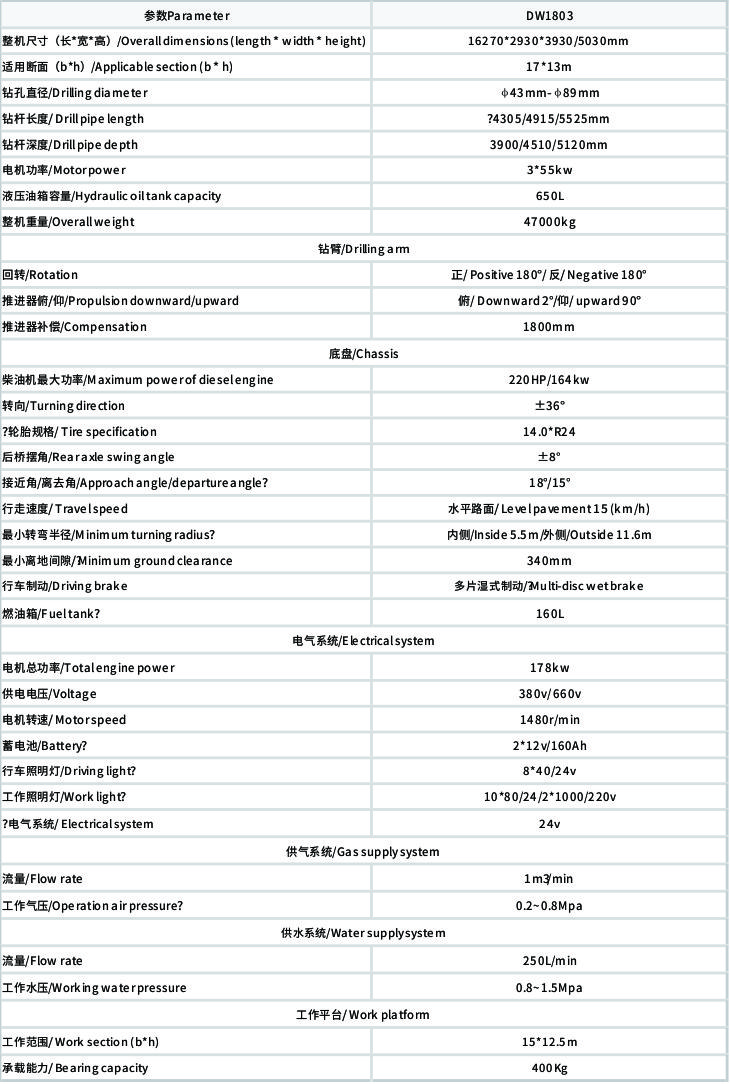

| 参数Parameter | DW1803 |
|---|
| 整机尺寸（长*宽*高）/Overall dimensions (length * width * height) | 16270*2930*3930/5030mm |
| 适用断面（b*h）/Applicable section (b * h) | 17*13m |
| 钻孔直径/Drilling diameter | φ43mm-φ89mm |
| 钻杆长度/ Drill pipe length | 4305/4915/5525mm |
| 钻杆深度/Drill pipe depth | 3900/4510/5120mm |
| 电机功率/Motor power | 3*55kw |
| 液压油箱容量/Hydraulic oil tank capacity | 650L |
| 整机重量/Overall weight | 47000kg |
| 钻臂/Drilling arm |
| 回转/Rotation | 正/ Positive 180°/ 反/ Negative 180° |
| 推进器俯/仰/Propulsion downward/upward | 俯/ Downward 2°/仰/ upward 90° |
| 推进器补偿/Compensation | 1800mm |
| 底盘/Chassis |
| 柴油机最大功率/Maximum power of diesel engine | 220HP/164kw |
| 转向/Turning direction | ±36° |
| 轮胎规格/ Tire specification | 14.0*R24 |
| 后桥摆角/Rear axle swing angle | ±8° |
| 接近角/离去角/Approach angle/departure angle | 18°/15° |
| 行走速度/ Travel speed | 水平路面/ Level pavement 15 (km/h) |
| 最小转弯半径/Minimum turning radius | 内侧/Inside 5.5m/外侧/Outside 11.6m |
| 最小离地间隙/ Minimum ground clearance | 340mm |
| 行车制动/Driving brake | 多片湿式制动/ Multi-disc wet brake |
| 燃油箱/Fuel tank | 160L |
| 电气系统/Electrical system |
| 电机总功率/Total engine power | 178kw |
| 供电电压/Voltage | 380v/ 660v |
| 电机转速/ Motor speed | 1480r/min |
| 蓄电池/Battery | 2*12v/160Ah |
| 行车照明灯/Driving light | 8*40/24v |
| 工作照明灯/Work light | 10*80/24/2*1000/220v |
| 电气系统/ Electrical system | 24v |
| 供气系统/Gas supply system |
| 流量/Flow rate | 1m³/min |
| 工作气压/Operation air pressure | 0.2~0.8Mpa |
| 供水系统/Water supply system |
| 流量/Flow rate | 250L/min |
| 工作水压/Working water pressure | 0.8~1.5Mpa |
| 工作平台/ Work platform |
| 工作范围/ Work section (b*h) | 15*12.5m |
| 承载能力/ Bearing capacity | 400Kg |
